Product Summary
The MQ-5 is a gas sensor. It is used in gas leakage detecting equipments in family and industry, are suitable for detecting of LPG, natural gas , town gas, avoid the noise of alcohol and cooking fumes and cigarette smoke.
Parametrics
MQ-5 absolute maximum ratings: (1)Vc, Circuit voltage: 5V±0.1 ; (2)VH, Heating voltage: 5V±0.1 ; (3)PL, Load resistance: 20KΩ; (4)RH, Heater resistance: 31±10%; (5)PH, Heating consumption: less than 800mw.
Features
MQ-5 features: (1)High sensitivity to LPG, natural gas , town gas; (2)Small sensitivity to alcohol, smoke; (3)Fast response ; (4)Stable and long life ; (5)Simple drive circuit.

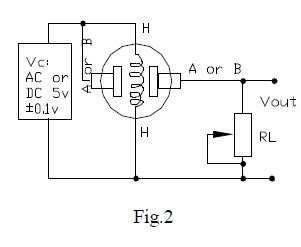

Diagrams
