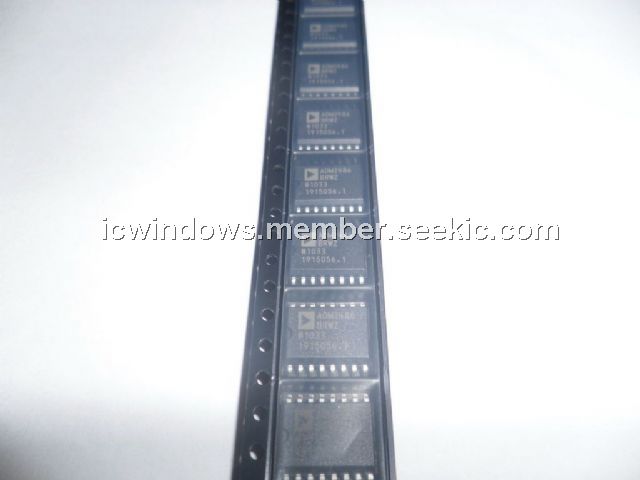

ADM2486BRWZ

Product Summary

The ADM2486BRWZ differential bus transceiver is an integrated, galvanically isolated component designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines and complies with ANSI TIA/EIA RS-485-A-1998 and ISO 8482:1987(E). The ADM2486BRWZ employs Analog Devices’ iCoupler technology to combine a 3-channel isolator, a 3-state differential line driver, and a differential input receiver into a single package. The logic side of the ADM2486BRWZ can be powered with either a 5 V or a 3 V supply while the bus side is powered with an isolated 5 V supply.

Parametrics

ADM2486BRWZ absolute maximum ratings: (1)VDD1: -0.5 V to +7 V; (2)VDD2: -0.5 V to +6 V; (3)Digital Input Voltage (RTS, RE, TxD): -0.5 V to VDD1 + 0.5 V; (4)Digital Output Voltage: RxD -0.5 V to VDD1 + 0.5 V; DE -0.5 V to VDD2 + 0.5 V; (5)Driver Output/Receiver Input Voltage: -9 V to +14 V; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -55℃ to +150℃; (8)Average Output Current per Pin: -35 mA to +35 mA; (9)θJA Thermal Impedance: 73℃/W; (10)Lead Temperature: Soldering (10 sec) 260℃; Vapour Phase (60 sec) 215℃; Infrared (15 sec) 220℃.

Features

ADM2486BRWZ features: (1)Half-duplex isolated RS-485 transceiver; (2)PROFIBUS compliant; (3)Complies with ANSI TIA/EIA RS-485-A-1998 and ISO 8482:1987(E); (4)20 Mbps data rate; (5)Low power operation: 12 mA (IDD1 + IDD2) @ 20 Mbps; (6)5 V or 3 V operation (VDD1); (7)High common-mode transient immunity: >25 kV/μs; (8)Isolated DE status output; (9)Receiver open-circuit fail-safe design; (10)Thermal shutdown protection; (11)Safety and regulatory approvals: UL recognition—2500 VRMS for 1 minute per UL 1577; (12)CSA component acceptance notice #5A; VDE certificate of conformity: DIN EN 60747-5-2 (VDE 0884 Part 2):2003-01; DIN EN 60950 (VDE 0805):2001-12; EN 60950:2000; (13)VIORM = 560 V peak; (14)Operating temperature range: -40℃ to 85℃; (15)Wide-body, 16-lead SOIC package.

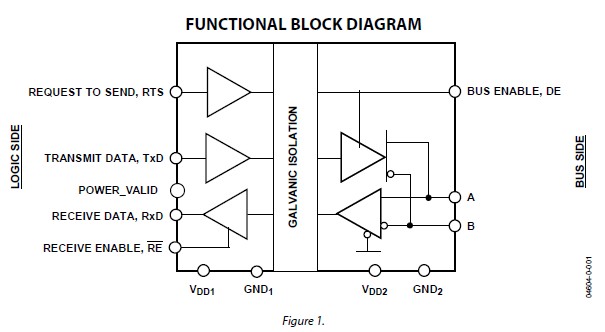

Diagrams
